Lowest Cost
Outside Wall Mount
ATM In The US!

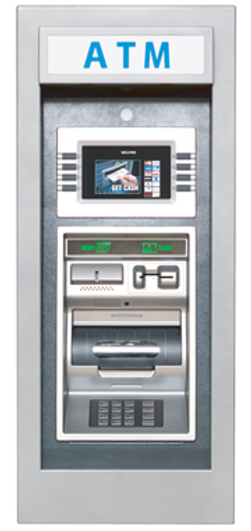

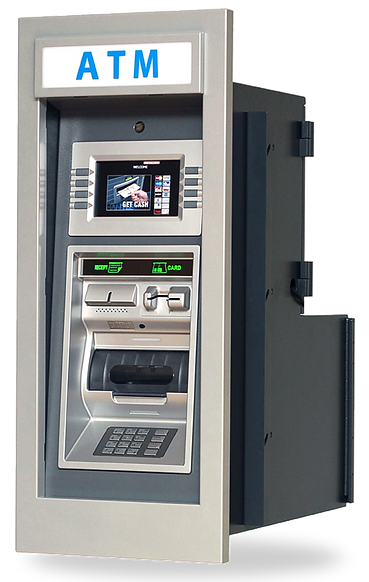

Introducing the #1 through-the-wall ATM. Designed and intended as a true through-the-wall machine, this ATM retains all the features and options of a retail floor model ATM in a small, compact weather resistant chassis, perfect for tight spaces, Kiosks or anywhere location space is valuable.

​

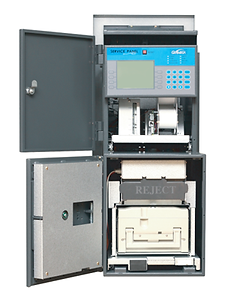

It uses a 7" high-resolution wide-screen LCD, 2" receipt printer and can be ordered with a fixed cassette or rear-load removalble cassette dispenser. There is also an optional Rear service-panel to provide secure loading and management fuctions.

​

This is the most economical through-the-wall ATM available today.

Dimensions

• Height = 52”

• Width = 19”

• Depth = 34”

• Weight = 212 lbs (With TCDU cash dispenser and packing)

Power Requirements

• 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

• In storage: 32°F - 104°F (0°C ~ 49°C)

• While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

• In storage : 10% < RH < 90%, non-condensed

• While operating : 15% < RH < 85%, non-condensed

Security

• UL291 Business Hours Vault

• Electronic Locks

• A series Lock

• Kaba MasCencon Locks
